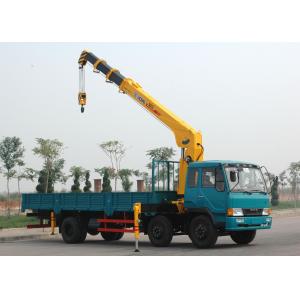

Durable 12T Telescopic Truck Loader Crane, XCMG Hydraulic Truck Crane

Quick Details:

Name: Telescopic boom crane Brand: XCMG

Max. Lifting Capacity: 12 ton Max. Lifting Moment: 30 T.M

Max. Oil Flow of Hydraulic System: 63 L/min Max. Lifting height:14.5meters

Crane Weight: 4200 kg Oil Tank Capacity: 160 L

Description:

Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arms are more longer, with wide operating range.

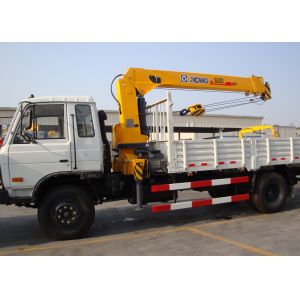

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQ12SK3Q is lifting capacity is 12tons moment is 30 T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­

Specifications:

Dimension drawing

Optional parts:

1. Moment limited device

1. Remote control equipment

2. Anti-overwind magnet valve

3. High seat on column

4. Work light

5. Assisatant stabilizer leg


Competitive Advantage:

1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity

4, Compact hinge point design take up smaller space

5, The work is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing impulse equipment that make vehicle running safely.

    Xuzhou Truck-Mounted Crane Co., Ltd is specialized in developing and manufacturing such major series as loader cranes,aerial work platform vehicles and tow truck, environment sanitation vehicles, bridge inspection truck, etc.

    As the leader manufacturer of loader crane and bridge inspection truck in china, we are the first company to develop newer design loader crane, and shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

    The company has the top technique developing team, solid foundation of technical innovation and products developing ability, has successive built the 3d designing systems, advanced products researching and developing platform which is symbolized as mechanics analysis systems with independent intellectual property and modulized brainpower. Series loader crane and bridge inspection truck had won the "national customer satisfactory product", the products are the most valuable and reliable to the customers. At present, the company has effective authorized patent 98 items, including two authorized patents of invention.  The company has been rated as "national high and new technology enterprise", "national torch plan key high-tech enterprise", "the jiangsu province lifting kind of special vehicle engineering technology research center", etc.
